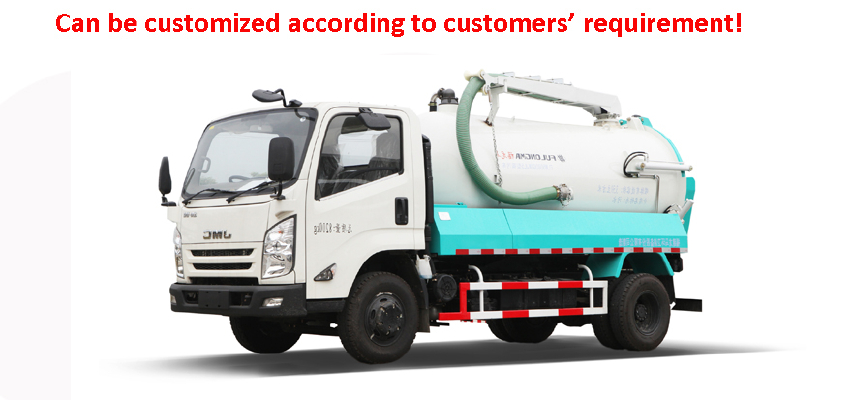

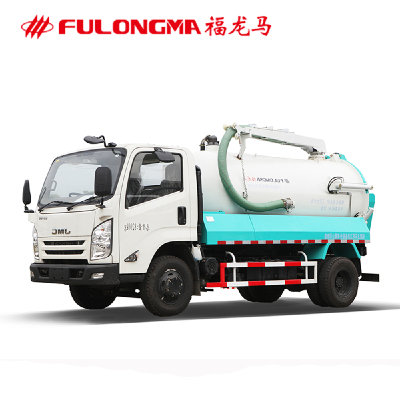

Fulongma Sewer Dredging and Cleaning Truck

Fulongma Sewer Dredging and Cleaning Truck

  • Min.Order Quantity: 1 Set
  • Supply Ability: 800 Sets per Month
  • Port: China Ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-12-21
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  28
  • Place of Origin:  Longyan,Fujian
  • Brand Name:  FULONGMA
  • Model Number:  FLM5070GXWQ4
  • Weight: 7300.000 kg

Main  Characteristic

  • The technical performance indicators have achieved or even exceed the domestic similar products. The truck mainly used in pumping and transporting of sludge, excrement in the sewer, water well, septic tank and various kinds of ditches or of sewage tank sediment in the petrochemical industry.

  •  With ISUZU EURO chassis and mid-sized model makes it’s suitable for working in the small streets, attached streets and communities.

  • The suction mouth in the rear door and using the detachable  suction pipe not only optimize the piping arrangement and makes the appearance artistically.

  • Using high cost-effective domestic vacuum pump to get high absolute working pressure, economy fuel (working in idle speed), low noise, big suction and large distance suction.

  • Combined sewer-suction and sewage automatic discharge in whole to reduce the round-trip times and reduce the labor intensity of operator and improve the working efficiency and save the cost.

  • The back door adopts adjustable locking mechanism with safety-protection hydraulic system and double safety mechanism to make the reliable sealing between garbage tank and the back door strip and also make sure the waste water and excrement are in the closed state in the collecting and transporting.

  • Waste water tank with imported liquid level display device to make it easier to observe and remove to clean and maintain.

  • Sewer-suction mouth and sewage-emission mouth all adopt imported knife-edge valve to make sure the leakproofness of the tank when sewer-suction and sewage-discharging.

  • Equipped with night working light to make it’s convenient for the sanitation man to work at night.

  • Vehicle-mounted washing device is optional which can wash the vehicle and cleanout the surrounding.


Fujian Longma Environmental Sanitation Equipment Co.,LTD

Add: Economic Development Zone, Longyan, Fujian Province, China.

Contact: Reese Chen ( 86 13328743040)

Tel: 86 597 2330358 Fax: 86 597 2790126

E-mail:flm_obd@fjlm.com.cn

www.fjlm.com.cn



  • Size:  28
  • Place of Origin:  Longyan,Fujian
  • Brand Name:  FULONGMA
  • Model Number:  FLM5070GXWQ4
  • Weight: 7300.000 kg



Parameter

FLM5070GXWQ4

Chassis Type

ISUZU QL1070A1HAY

National Emission Standard

EURO Ⅳ

Engine Model Power  KW

4KH1-TCG40/  80KW

Dimension                                                      (mm)

5725* 16925* 2520

Gross Vehicle Weight                                      (kg)

7300

Unladen Weight                                              (kg)

3700

Payload Weight                                              (kg)

3470

Wheel Base                                                       (mm)

3360

Front/Rear Overhang                                         (mm)

1015/1350

Approach/Departure Angle                               (°)

24/22

Vocuum Pump Rotating Speed           (r/min)

500

Garbage Container Volume                                 (m³)

1.6

Theory Pump Speed                                          (L/s)

45

Effective Suction                                                 (m)

over 6

Waste Water Tank                                            (m³)

over 4

Absolute working speed (vacuum degree)         (Pa)

400(99.6%)
