Product Details

Main Characteristic
Using Japanese high-intensity u-shaped integral truss groove as the working rail of the garbage push board, the compression capability is strong, non-deformability is good. Use arc design to have large effective volume and the overall structure performance is outstanding and the shock resistance is strong. The hopper filling mouth installs the seal cover plate can effectively prevent the secondary pollution of garbage and stink. As the joint part between the hopper and the containers uses the adjustable hydraulic locking seal technology, the leakproofness is good. With multiple security protection measures such as slide-board upward and scraper blade button, emergency stop button. With imported PLC programming and intelligent control system, it can centralized control in the cab. Equipped with night working light to make it’s convenient for the sanitation man to work at night. Equipped with two-way compression function to make high compression efficiency and big waste loading capacity. According to user requirements it can equipped with all kinds of garbage lifting device. 240L (single barrel or double barrel), 360L or 660L standard barrel lifting flip mechanism is optional and also the floor type tipping bucket is optional.

Main Characteristic

Using Japanese high-intensity u-shaped integral truss groove as the working rail of the garbage push board, the compression capability is strong, non-deformability is good.
Use arc design to have large effective volume and the overall structure performance is outstanding and the shock resistance is strong.
The hopper filling mouth installs the seal cover plate can effectively prevent the secondary pollution of garbage and stink.
As the joint part between the hopper and the containers uses the adjustable hydraulic locking seal technology, the leakproofness is good.
With multiple security protection measures such as slide-board upward and scraper blade button, emergency stop button.
With imported PLC programming and intelligent control system, it can centralized control in the cab.
Equipped with night working light to make it’s convenient for the sanitation man to work at night.
Equipped with two-way compression function to make high compression efficiency and big waste loading capacity.

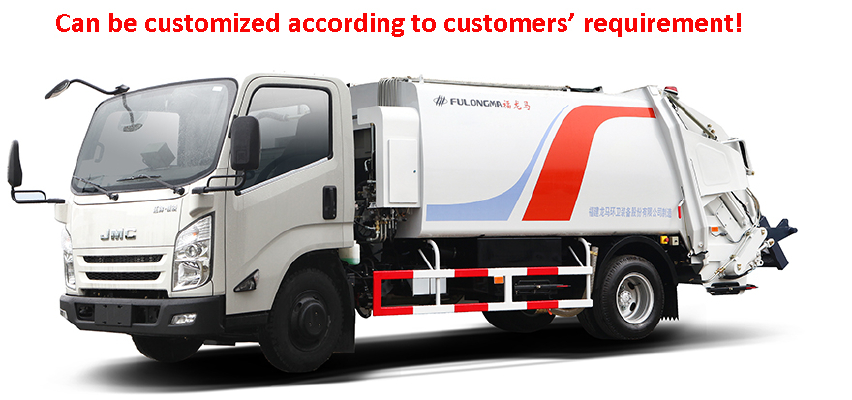

According to user requirements it can equipped with all kinds of garbage lifting device.
240L (single barrel or double barrel), 360L or 660L standard barrel lifting flip mechanism is optional and also the floor type tipping bucket is optional.

Fujian Longma Environmental Sanitation Equipment Co.,LTD

Add: Economic Development Zone, Longyan, Fujian Province, China.

Contact: Reese Chen ( 86 13328743040)

Tel: 86 597 2330358 Fax: 86 597 2790126

E-mail:flm_obd@fjlm.com.cn

www.fjlm.com.cn

Parameter	FLM5070ZYJL5
Chassis Type	JMC JX1073TG25
National Emission Standard	EURO V
Engine Model Power KW	JX4D30A5H 112KW
Dimension (mm)	6645 * 2145 * 2380
Gross Vehicle Weight (kg)	6910
Unladen Weight (kg)	5700
Payload Weight (kg)	1015
Wheel Base (mm)	3360
Front/Rear Overhang (mm)	1125/1850
Approach/Departure Angle (°)	23/10
Hopper Volume (m3)	0.66
Hopper Opening Width (mm)	1565
Hopper Bottom above Floor(unladen) (mm)	940
Compression Frame	bi-directional compression
Refuse Container Capacity (m3)	≥6.5
Waste Water Tank (L)	≥458=176(Front) 112(Side) 170(Rear)
Hydraulic System Working pressure (Mpa)	18
Cycle Time of Loading (s)	13
Cycle Time of Discharging (s)	16
Cycle Time of Lifting Device (s)	15
Refuse Compression Density (t/m3)	0.7
Max Smash Compression Force (KN)	112
Max Thrust Force of Push Board (KN)	156

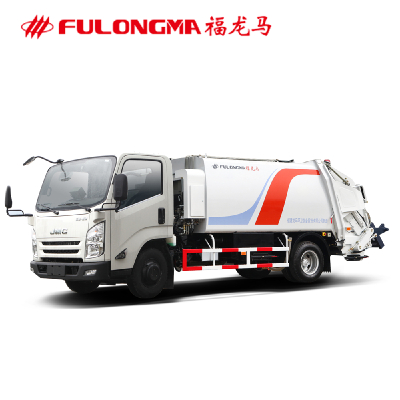

Fulongma 6.5CBM 7ton Garbage Compression Truck
