Product Details

Main Characteristic
Using Japanese high-intensity u-shaped integral truss groove as the working rail of the garbage push board, the compression capability is strong, non-deformability is good. Use arc design to have large effective volume and the overall structure performance is outstanding and the shock resistance is strong. The hopper filling mouth installs the seal cover plate can effectively prevent the secondary pollution of garbage and stink. As the joint part between the hopper and the containers uses the adjustable hydraulic locking seal technology, the leakproofness is good. With multiple security protection measures such as slide-board upward and scraper blade button, emergency stop button. With imported PLC programming and intelligent control system, it can centralized control in the cab. Equipped with night working light to make it’s convenient for the sanitation man to work at night. Equipped with two-way compression function to make high compression efficiency and big waste loading capacity. According to user requirements it can equipped with all kinds of garbage lifting device. 240L (single barrel or double barrel), 360L or 660L standard barrel lifting flip mechanism is optional and also the floor type tipping bucket is optional. Equiped with two motor drive, can use 380V alternating current or PTO to finish hopper operation;

Main Characteristic

Using Japanese high-intensity u-shaped integral truss groove as the working rail of the garbage push board, the compression capability is strong, non-deformability is good.
Use arc design to have large effective volume and the overall structure performance is outstanding and the shock resistance is strong.
The hopper filling mouth installs the seal cover plate can effectively prevent the secondary pollution of garbage and stink.
As the joint part between the hopper and the containers uses the adjustable hydraulic locking seal technology, the leakproofness is good.
With multiple security protection measures such as slide-board upward and scraper blade button, emergency stop button.
With imported PLC programming and intelligent control system, it can centralized control in the cab.
Equipped with night working light to make it’s convenient for the sanitation man to work at night.
Equipped with two-way compression function to make high compression efficiency and big waste loading capacity.
According to user requirements it can equipped with all kinds of garbage lifting device.
240L (single barrel or double barrel), 360L or 660L standard barrel lifting flip mechanism is optional and also the floor type tipping bucket is optional.
Equiped with two motor drive, can use 380V alternating current or PTO to finish hopper operation;

Fujian Longma Environmental Sanitation Equipment Co.,LTD

Add: Economic Development Zone, Longyan, Fujian Province, China.

Contact: Reese Chen ( 86 13328743040)

Tel: 86 597 2330358 Fax: 86 597 2790126

E-mail:flm_obd@fjlm.com.cn

www.fjlm.com.cn

Parameter	FLM5070ZYJL5
Chassis Type	DFL1250A11
National Emission Standard	EURO ⅳ
Engine Model Power KW	ISDe245 40 180KW
Dimension (mm)	10190* 2500 * 3590
Gross Vehicle Weight (kg)	25000
Unladen Weight (kg)	15220
Payload Weight (kg)	9650
Wheel Base (mm)	4350 1300
Front/Rear Overhang (mm)	1460/3080
Approach/Departure Angle (°)	20/10
Hopper Volume (m3)	1.3
Hopper Opening Width (mm)	1565
Hopper Bottom above Floor(unladen) (mm)	1960
Compression Frame	bi-directional compression
Refuse Container Capacity (m3)	≥6.5
Waste Water Tank (L)	≥1130=320(Front) 430(Side) 380(Rear)
Hydraulic System Working pressure (Mpa)	21
Cycle Time of Loading (s)	less than 24
Cycle Time of Discharging (s)	less than 34
Cycle Time of Lifting Device (s)	less than 16
Refuse Compression Density (t/m3)	over 0.7
Max Smash Compression Force (KN)	186
Max Thrust Force of Push Board (KN)	248

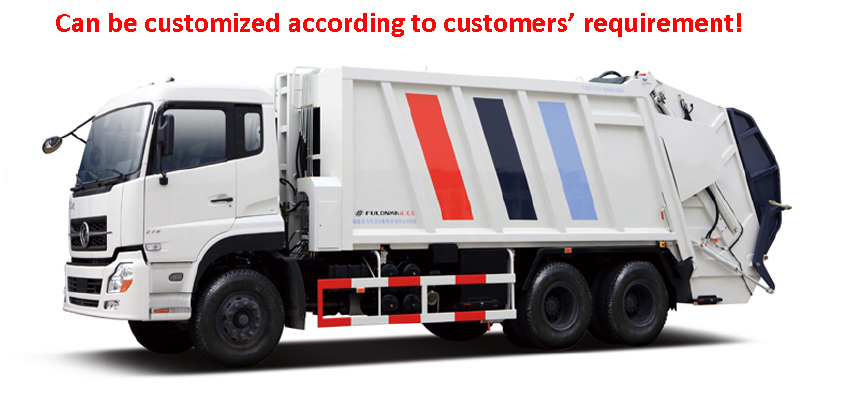

Fulongma 25ton Garbage Compression Truck
